Description

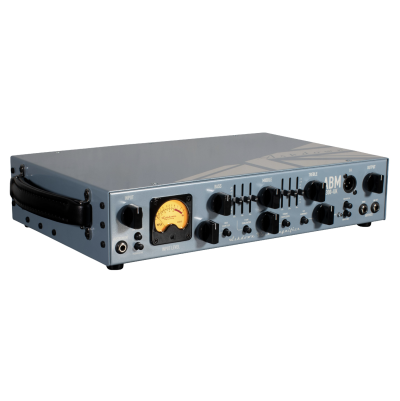

The UK-built UK-ABM-300-EVO IV is a powerhouse of tonal flexibility and classic warmth. Featuring 300 watts of pure Ashdown bass tone, it boasts a foot-switchable Variable Valve Drive Plus, precision 9-band EQ, One Knob Compressor, and Sub-Harmonic Generator.
Built for performance and studio use alike, with comprehensive connectivity including FX loop, tuner out, and Line Input.
Power:
• Power Output: 300 Watts
• Power Requirement: 115–230 Volts
• Impedance: Minimum 4 Ohms
• Preamp Tubes: 1 × 12AX7
Connectivity:
• Speaker Outputs: 2 × Neutrik Jack/Speakon outputs
• Line Input: Impedance 22k Ohms, input level 0dBu nominal
• DI Output: 600 Ohm balanced, Level 0dBu nominal
• Tuner Output: Impedance 22k Ohms, Level 0dBu nominal
• Effects Send: Impedance 22k Ohm, Level 0dBu nominal
• Effects Return: Impedance 22k Ohms, Input Level 0dBu nominal
Performance:
• Frequency Response: -3dB @ 17Hz and 30kHz
• High Instrument Input: Impedance 3.9m Ohms, input range 150mV
• Low Instrument Input: Impedance 10k Ohms, input range 300mV – 40V p-p
Dimensions:
• Height × Width × Depth (mm): 617 x 475 x 227
• Weight (kg): 11.60
